This guide will help in setting up microphone to work trough the RDP connection.

Configuring Device Redirection Services

First step is done on the local PC and target server. Run “gpedit.msc”:
Configuring microphone forwarding for RDP connection. - Image 1

Go by path:

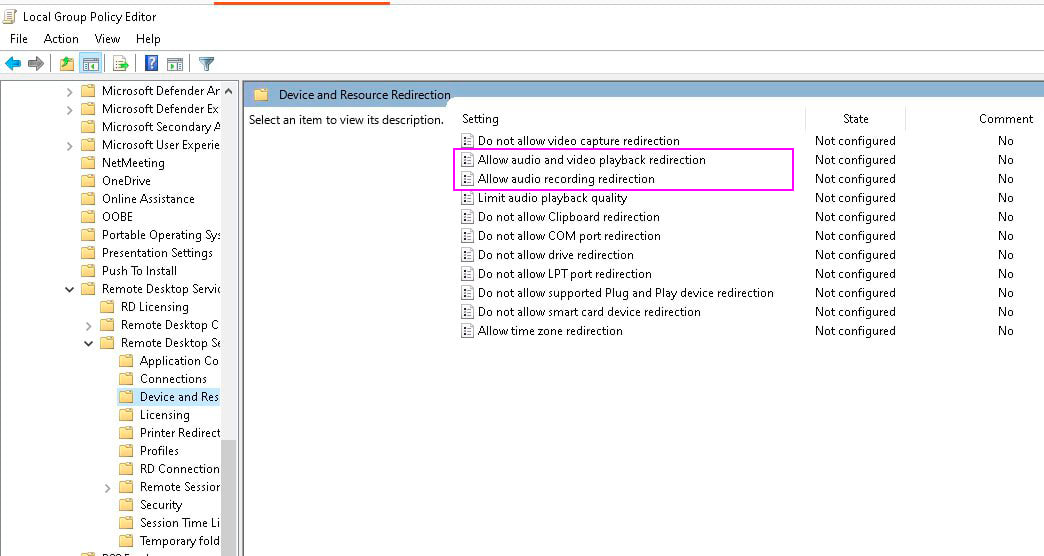

Local Computer Policy -> Computer Configuration -> Administrative templates -> Windows Components -> Remote Desktop Services -> Remote Desktop Session Host -> Devise and Resource Redirection-> Enable  “Allow audio recording redirection” и “Allow audio and video payback redirection”:

Configuring microphone forwarding for RDP connection. - Image 2

Enabling Windows Audio Services

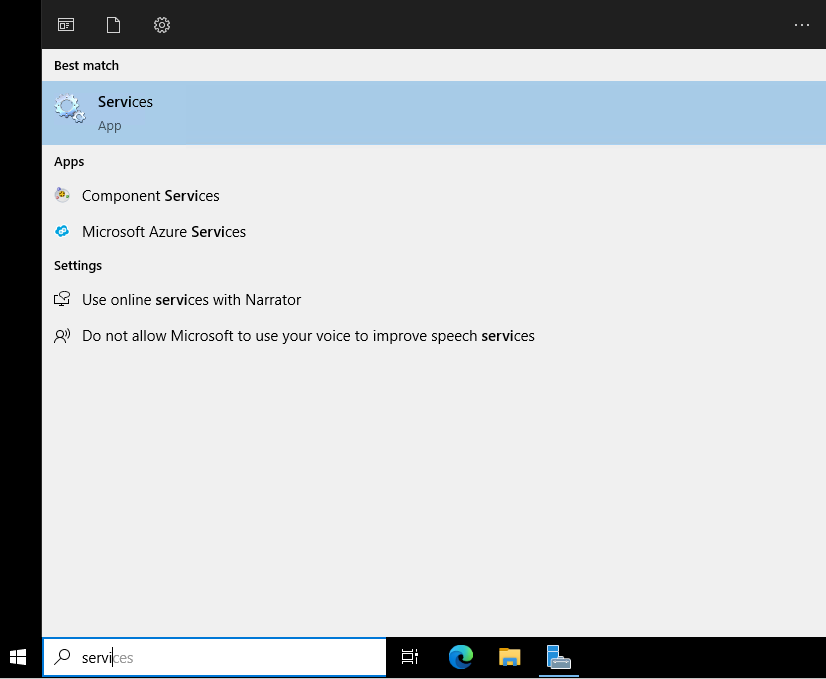

Search for “services”:
Configuring microphone forwarding for RDP connection. - Image 3

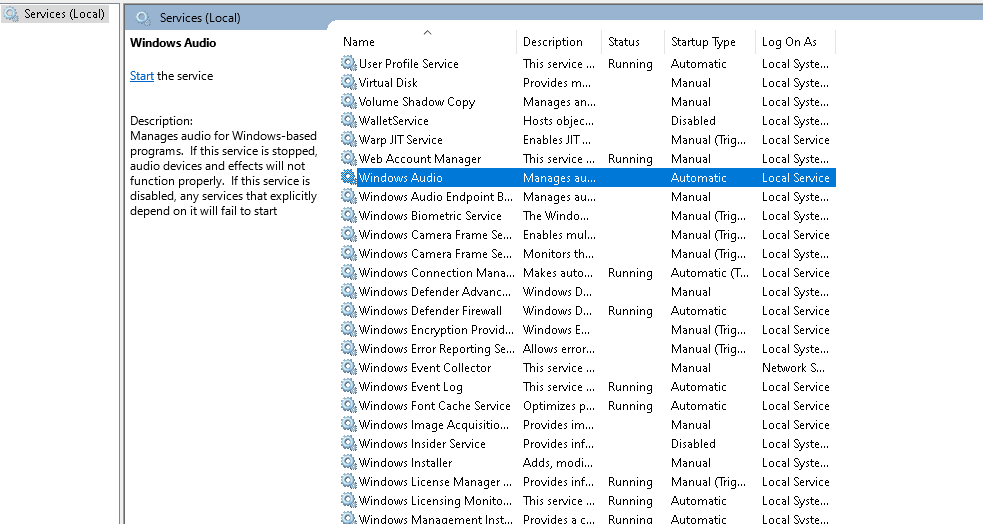

Find and open “Windows Audio” Service:

Configuring microphone forwarding for RDP connection. - Image 4

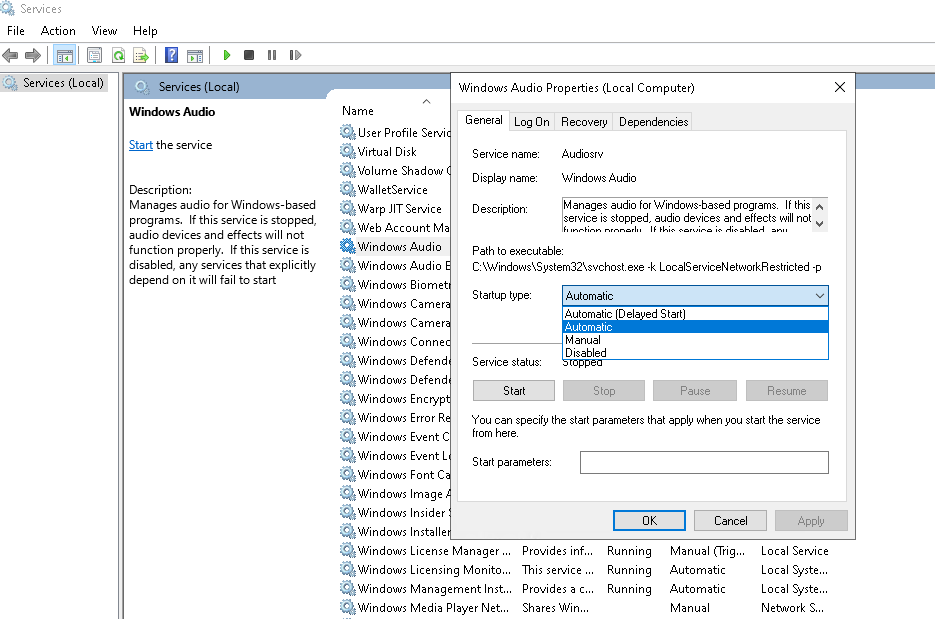

In the “Startup type” choose “Automatic” so that service is always available:

Configuring microphone forwarding for RDP connection. - Image 5

Updating registry settings

Run “REGEDIT”:

Configuring microphone forwarding for RDP connection. - Image 6

Go by path HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Terminal Server\WinStations\RDP-Tcp

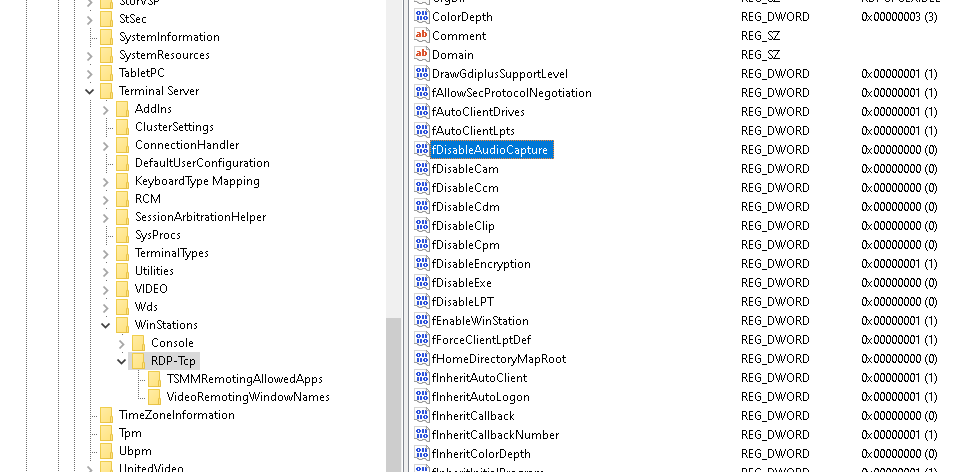

Find fDisableAudioCapture and set to 00000000:

Configuring microphone forwarding for RDP connection. - Image 7

Configuring microphone forwarding for RDP connection. - Image 8

Adding role “Remote Desktop Session Host”

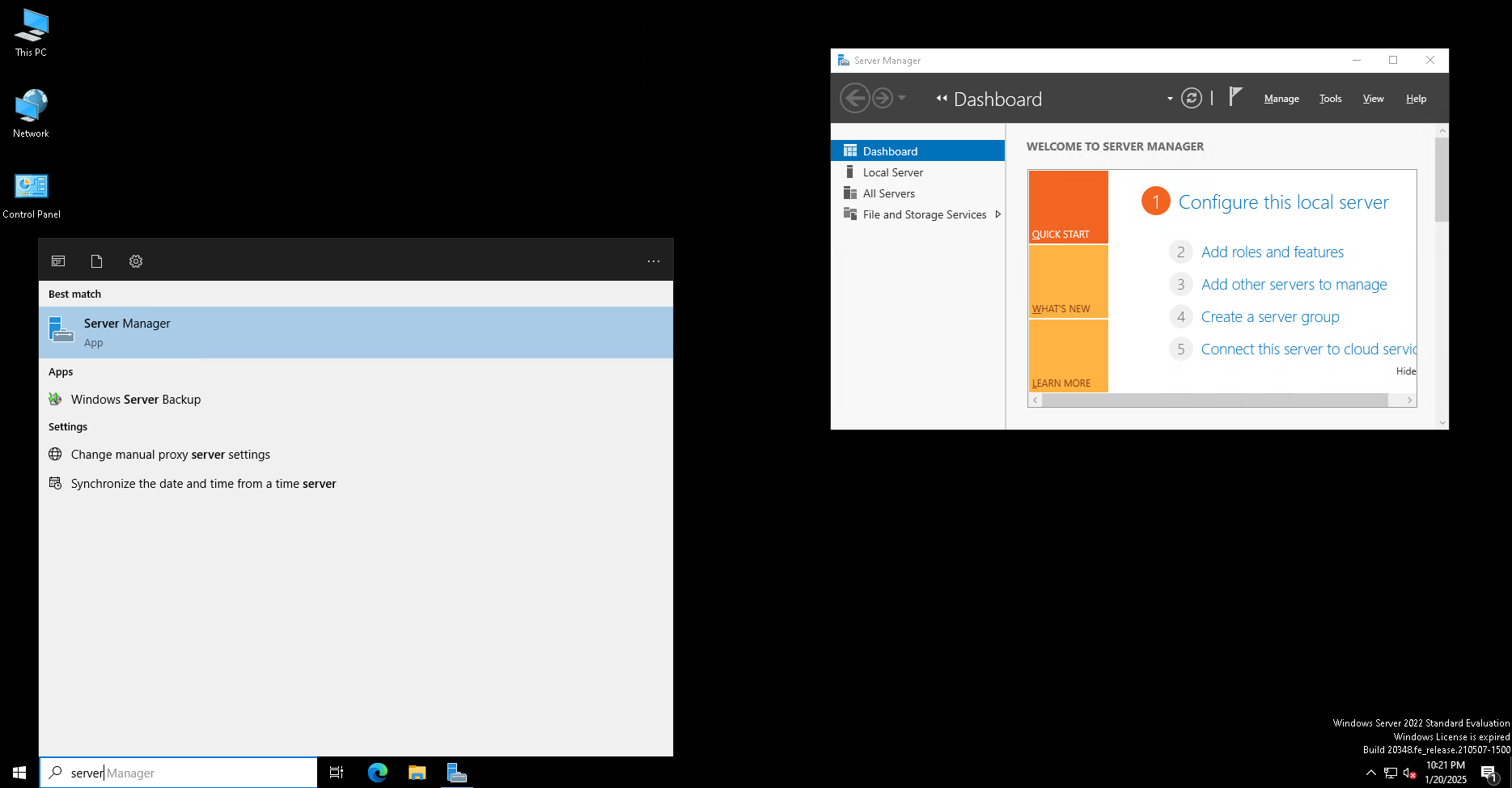

In the Start menu look for a “Server Manager”:

Configuring microphone forwarding for RDP connection. - Image 9

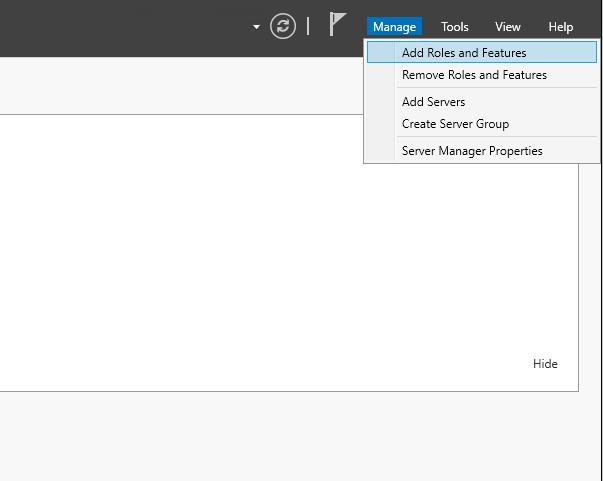

Click on the “Manage” and choose “Add roles and features”:

Configuring microphone forwarding for RDP connection. - Image 10

Next you will encounter a series of steps to finish installation. Following action order will tell you what to do on each step:

1)Next

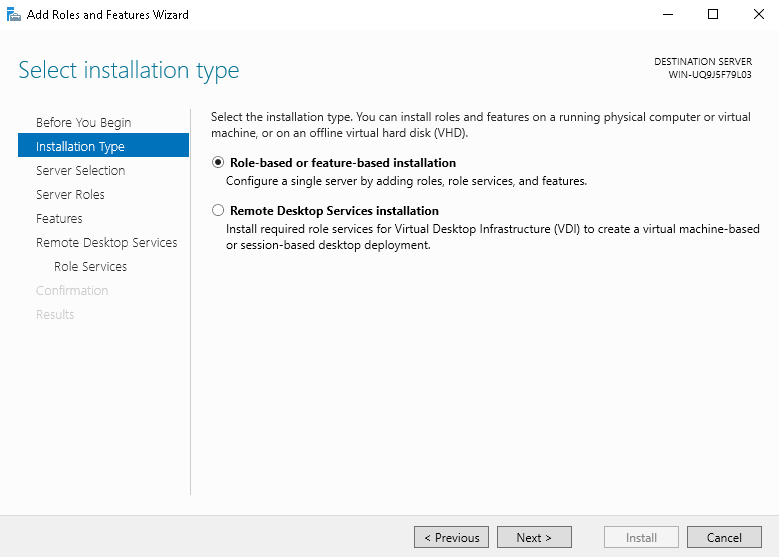

2)Choose Role-based or feature-based installation + Next

Configuring microphone forwarding for RDP connection. - Image 11

3)Next

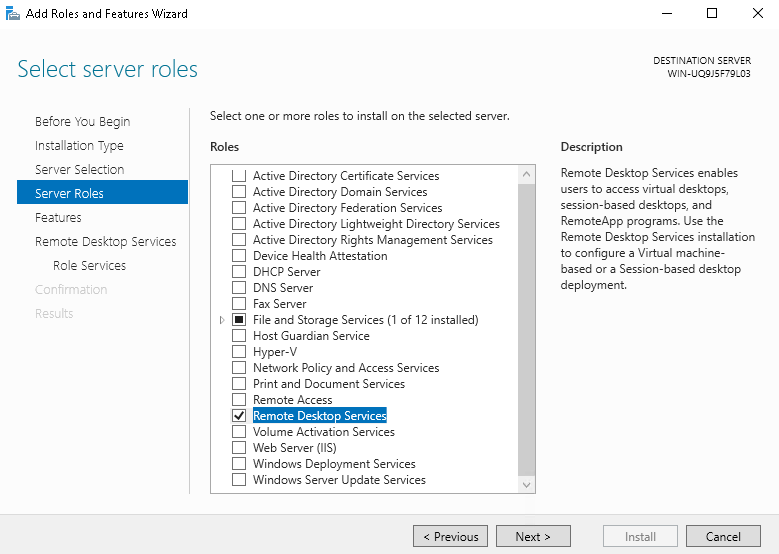

4)In the list choose “Remote Desktop Services” + Next

Configuring microphone forwarding for RDP connection. - Image 12

5)Next
6)Next

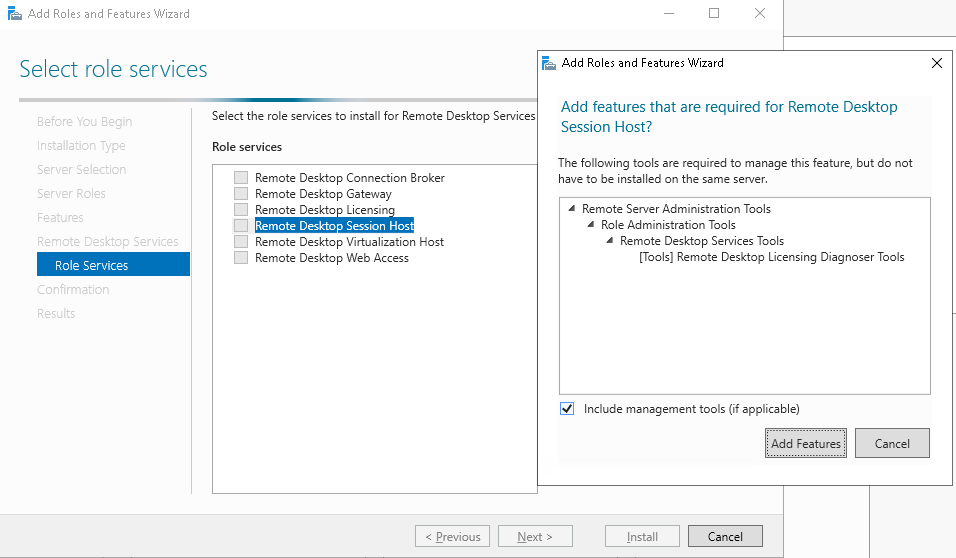

7)Choose Remote Desktop Session Host + Add Features + Next

Configuring microphone forwarding for RDP connection. - Image 13

Now install services and reboot the server.

After that don’t forget to allow the usage of the microphone in your RDP client and everything should be working fine. If you encounter any issues feel free to ask us via ticket or online chat. Thank you for reading!
